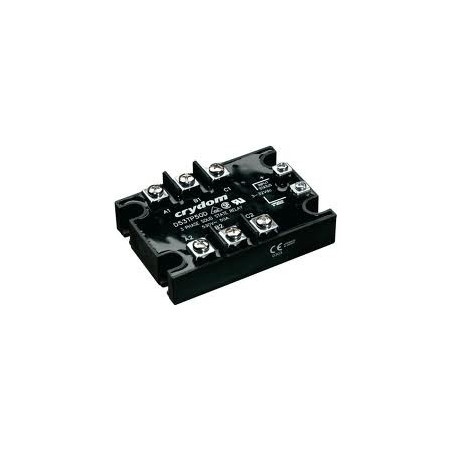

Relè modulo trifase SSR ingr 3-32Vcc 50A
  • Relè modulo trifase SSR ingr 3-32Vcc 50A
  • Relè modulo trifase SSR ingr 3-32Vcc 50A

Relè modulo trifase SSR ingr 3-32Vcc 50A

99,00 €
Tasse incluse spedito entro 24 ore

Relè modulo trifase Solid State Rele' ingr 3-32Vcc 50A

Quantità
Pronta consegna

Relè modulo trifase SSR ingr 3-32Vcc 50A

Informazioni sui prodotti
  • SSR, 50A
  • Control Voltage Range: 4V DC to 32V DC
  • Operating Voltage Range: 48Vrms to 530Vrms
  • Load Current: 50A
  • Relay Terminals: Screw
  • SVHC: No SVHC (19-Dec-2011)
  • Blocking Voltage: 1200V
  • Control Voltage DC Max: 32V
  • Control Voltage DC Min: 4V
  • Control Voltage Type: DC
  • External Depth: 22mm
  • External Length / Height: 104mm
  • External Width: 73.5mm
  • Fixing Centres LxW: 92 x 47.6mm
  • I2t: 1250s
  • Insulation Resistance: 4000ohm
  • Isolation Voltage: 4kV
  • Load Current Max: 74A
  • Load Current Min: 50mA
  • Load Current RMS Max: 50A
  • Must Release Voltage: 100V
  • No. of Phases: Three
  • On State Resistance Max: 300ohm
  • Operating Frequency Max: 25Hz
  • Operating Frequency Min: 65Hz
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
  • Output Type: SCR
  • Overload Current Per Phase: 74A @ 1 sec,56A @ 5 sec
  • RMS Load Current Min: 0.05A
  • RMS Load Voltage Max: 530V
  • RMS Load Voltage Min: 48V
  • Rate of Voltage Change dv / dt: 500V/µs
  • Series: 53TP
  • Single Cycle Surge Current: 500A
  • Surge Current: 650A
  • Terminal Type: Screw

Produttore
D53TP50D
